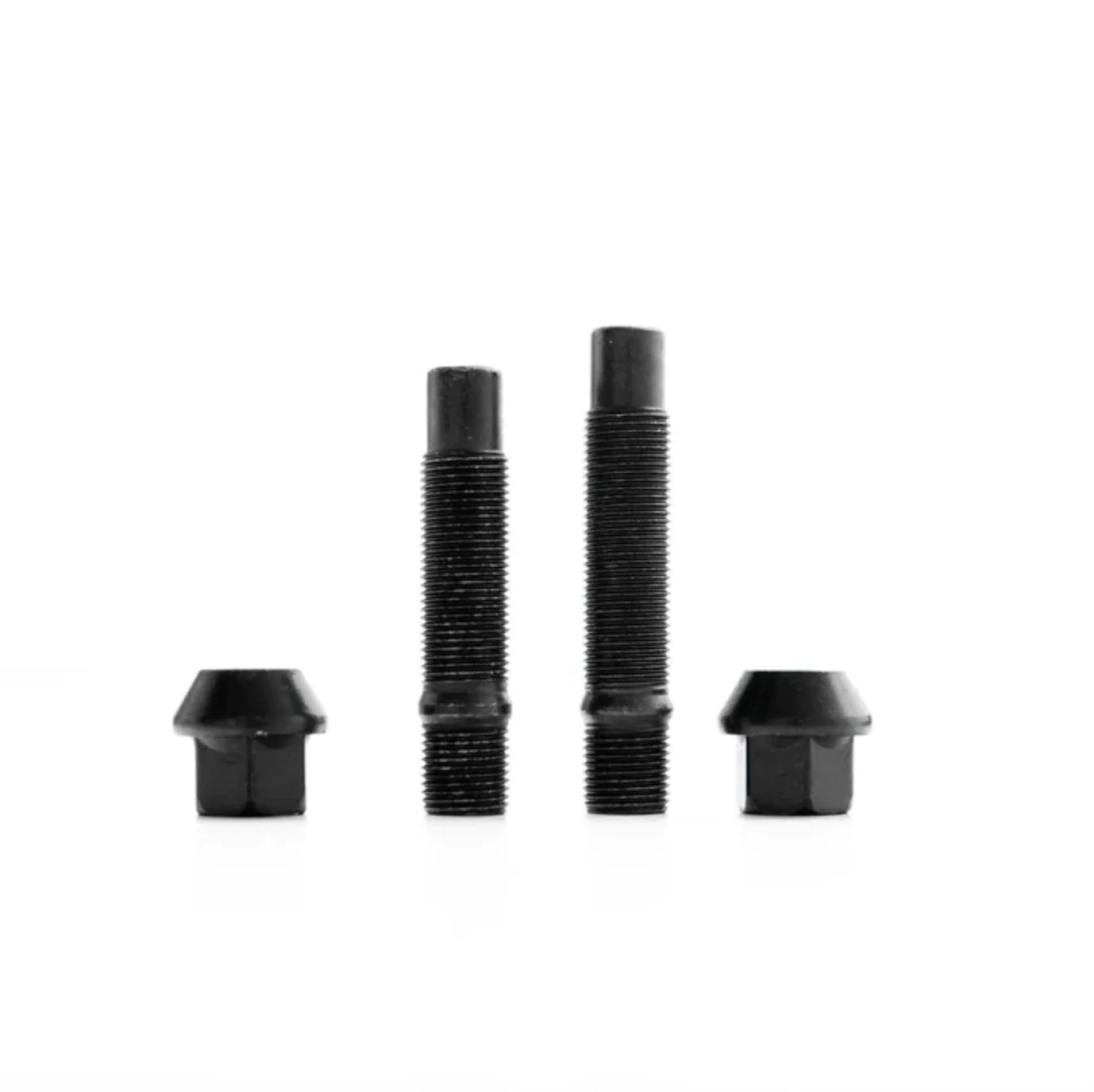

Enhance your vehicle's performance and aesthetics with the Bimecc M14x1.25 Wheel Stud & Nut Conversion Kit, a must-have for those running Bimecc's eye-catching anodised wheel spacers. This comprehensive kit is designed to seamlessly fit a variety of vehicles, offering a perfect blend of style and functionality.

Choose the Perfect Size for Your Vehicle:

• 68mm Studs: Ideal for vehicles running 0-12mm spacers, ensuring a snug fit and optimal alignment.
• 75mm Studs: Tailored for vehicles running up to 15mm spacers, providing the perfect balance and stability.
• 82mm Studs: Designed for vehicles running up to 20mm spacers, offering enhanced support and performance.

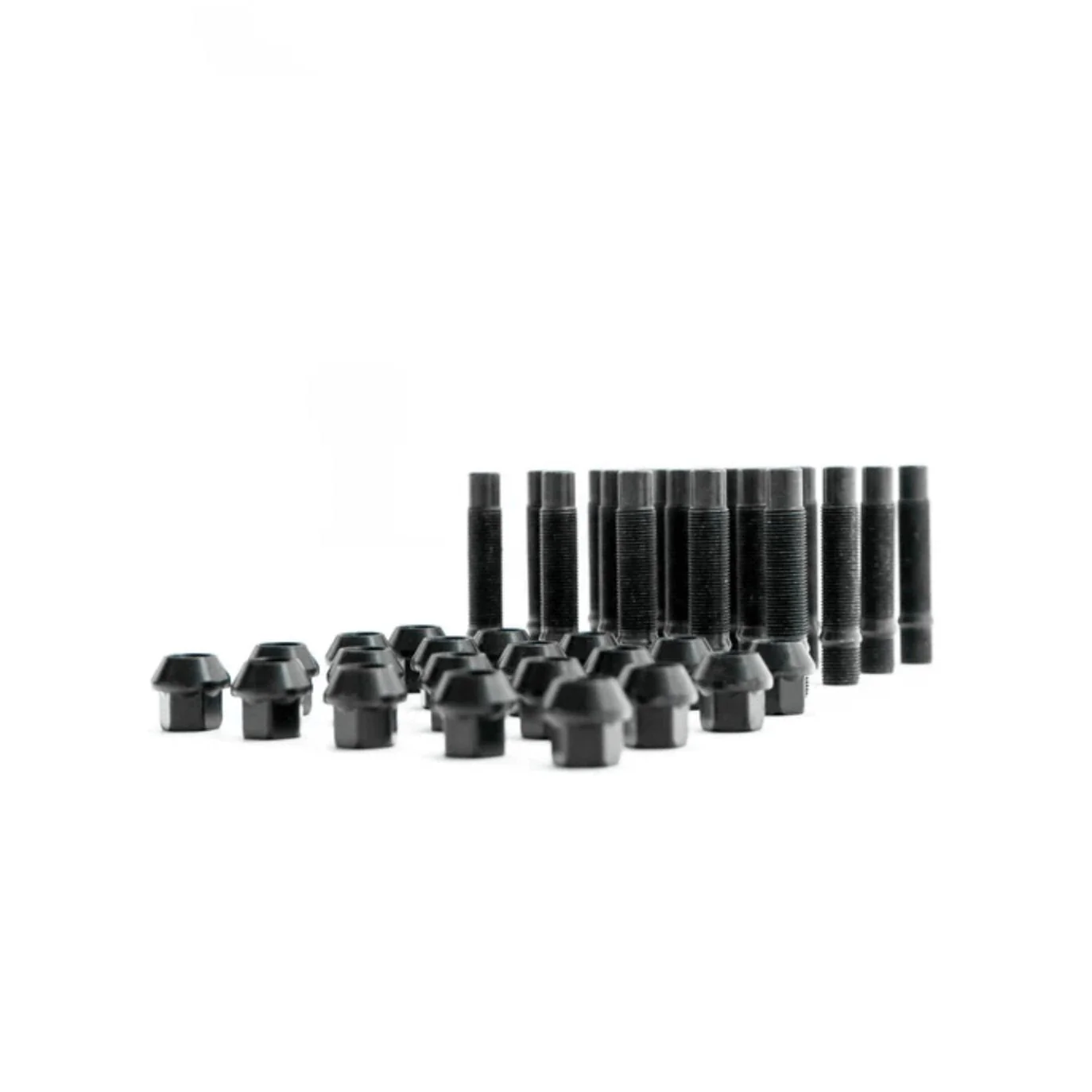

What's Included

• 20x Steel Studs
• 20x Nuts

Black Anodised Finish: This sleek finish not only adds a touch of elegance but also provides an extra layer of protection against wear and tear.
Size Options: Available in 68mm, 75mm, and 82mm, depending on your spacer size, ensuring a perfect fit for your specific needs.

How to install

Fitting Instructions Professional installation is recommended for this product.

Tools & Consumables Required

• Thread Chasing Tool (vehicle-specific sizing)
• Penetrating Oil (e.g. WD-40)
• Brake Cleaner
• Clean Cloths
• Wire Brush
• Thread Lock (e.g. Permatex 8179)
• Calibrated Torque Wrench and Appropriate Sockets

Installation

Step 1 — Clean the Hub Use a wire brush to remove all rust and corrosion from the hub face and ring. Chase the threads using penetrating oil and a thread chasing tool, then flush thoroughly with brake cleaner until it runs clear. Wipe down with a clean cloth and allow to fully evaporate.

Step 2 — Prep the Studs Apply brake cleaner to each new stud, wipe clean, and leave for approximately 1 minute to evaporate.

Step 3 — Check Stud Hole Depth Before installing, manually thread one stud (short end first) into each hole to confirm it doesn't bottom out. If unsure, use a pen or thin probe to measure the usable depth — it must be at least equal to the stud length. Check every hole, as broken bolt remnants or debris may be present.

Step 4 — Apply Thread Lock & Install Studs Apply a small amount of thread lock to the tip and ~5mm down the shorter threaded section of each stud. Hand-tighten into the hub. Thread one nut halfway down the stud, then thread a second nut up against it with the cones facing each other. Lock the two nuts together with the correct socket, then torque the stud to 32Nm using a torque wrench on the outer nut. Repeat for all studs.

Thread lock takes ~1 hour to set and 24 hours to fully cure.

Step 5 — Mount the Wheel No additional consumables needed. Install the wheel and hand-tighten all nuts. Tighten in a star pattern (working diagonally opposite each time), then lower the vehicle and torque all nuts to 122Nm, again in a star pattern.

Step 6 — Re-check Torque Recheck torque after 100 miles or your first track session. AUTOID recommends replacing your studs annually as part of routine maintenance.

TUV Certification

Bimecc are a certified TUV manufacturer of wheel accessories. This document below can be used as an approval for TUV.

Click here

Compatibility

• BMW F Series models
• BMW G Series models
• Toyota A90 Supra (Mk5)
